Curing Tank Temperature Controller

Curing Tank Temperature Controller Specification

Port Size
Standard 1/2 inch inlet

Mounting Type
Panel mounting

Resolution
0.1C

Automation Grade
Automatic

Display Type
Digital

Application
Maintaining and controlling water temperature in curing tanks for concrete specimen testing

Accuracy
1C

Operating Voltage
230 V AC

Power Supply
230 V AC, 50 Hz

Features
Digital controller, high precision, easy installation, robust construction, external temperature sensor

Equipment Type
Curing Tank Temperature Controller

Frequency
50 Hz

Response Time
Instantaneous

Temperature
Ambient to 100C adjustable

Interface Type
Panel mount with digital controls

Measuring Range
0C to 100C

Usage
Laboratory temperature control

Capacity
Up to 100 litres tank

Machine Weight
Approx. 7 kg

Control Mode
Digital automatic temperature control

Alarm Function
Over-temperature audible alarm

Sensor Type
PT100 temperature sensor

Cable Length
1.5 metres

Protection Class
IP54

Heater Power
1 kW to 2 kW

Material of Housing
Powder coated metal

Operating Environment
Indoor use only

Curing Tank Temperature Controller Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Curing Tank Temperature Controller

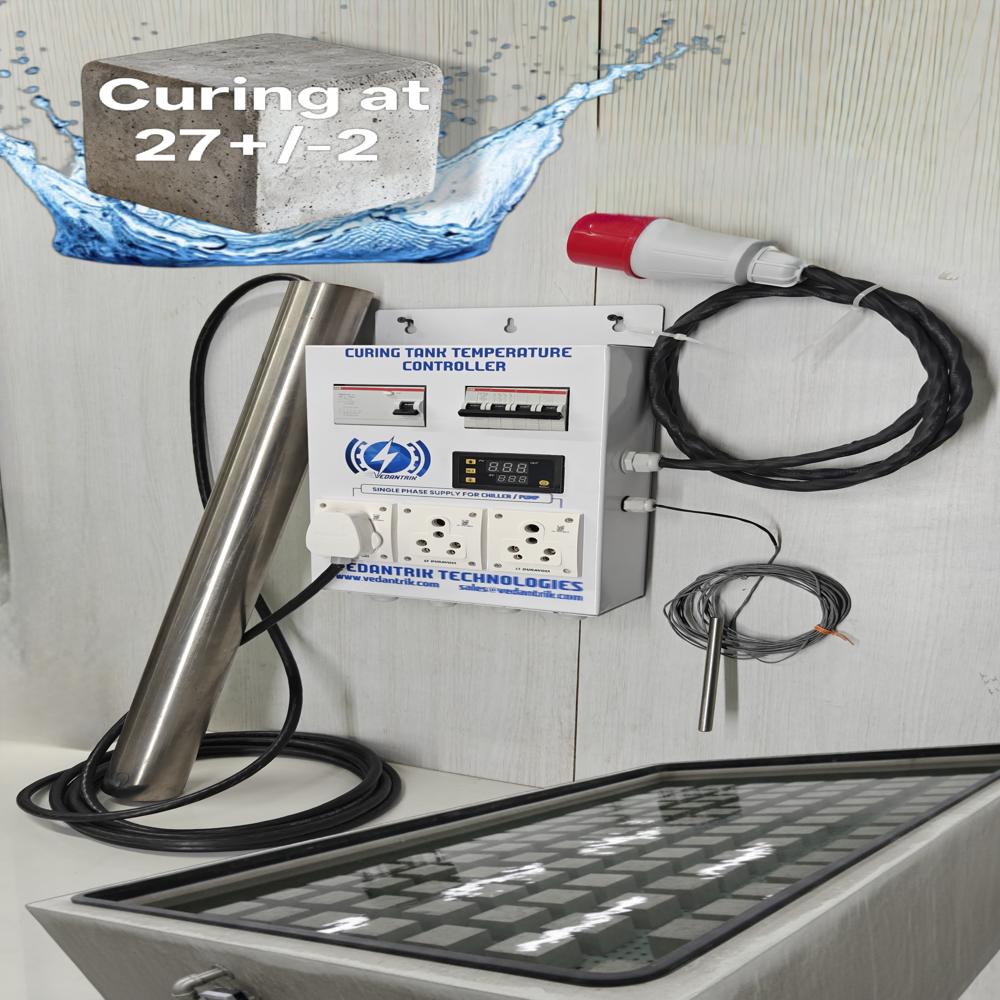

Curing Tank Temperature Controller for Concrete Cubes

NABL Calibrated | Single & Three Phase | Waterproof & Shockproof | Heater, Chiller & Pump Ready

Vedantrik Technologies presents an advanced curing tank temperature controller designed specifically for concrete cube curing tanks used in NABL-accredited laboratories, RMC plants, construction site labs, and infrastructure projects.

The system accurately maintains the standard curing temperature of 27 2 C, as prescribed by IS and NABL guidelines. Equipped with an intelligent temperature controller, SS316 waterproof immersion heaters, and built-in electrical safety protections, this solution eliminates manual temperature monitoring and ensures consistent, audit-compliant curing conditions.

Each system can be supplied with an NABL-traceable calibration certificate, making it suitable for laboratory audits and quality assurance processes.

Concrete Curing Tank Temperature Control System

This plug-and-play curing tank controller manages heating during winter and cooling during summer, ensuring uninterrupted and uniform curing of concrete test specimens.

The controller supports both single phase and three phase power supplies, allowing it to work seamlessly with different tank sizes and heater configurations without any modification.

Ideal Applications

Concrete cube curing tanks
NABL civil engineering laboratories
Construction site testing laboratories
RMC plants and QA/QC departments
Infrastructure and government projects

Technical Specifications Curing Tank Controller

Power Supply: Single Phase / Three Phase AC, 230 V
Maximum Current Capacity: 32 Amps
Temperature Set Point: 27 2 C
Temperature Accuracy: 1 C
Controller Power Cord Length: 2 meters
Temperature Sensor Cable Length: 5 meters

Plug & Play Connections

Heater connection
Chiller connection
Water circulation pump connection
Temperature sensor connection

No skilled installation required.

Key Features of Curing Tank Temperature Controller

Compatible with single phase and three phase heaters
Dedicated socket for chiller (summer curing)
Dedicated socket for circulation pump
Built-in short circuit and over-current protection
Integrated MCB and RCCB for complete electrical safety
Rugged design suitable for laboratory and onsite conditions

Smart Heating & Cooling Logic (Energy Efficient)

Heating Control Winter Operation

Heater switches OFF above 27 C
Heater switches ON below 25 C
Prevents overheating and reduces power consumption

Chiller Control Summer Operation

Chiller switches ON above 29 C
Chiller switches OFF below 25 C
Maintains curing temperature as per NABL and IS standards

Heater Selection Based on Curing Tank Volume

Below 2000 liters: Single phase heater recommended
Above 2000 liters: Three phase heater recommended

The controller supports both heater types without any modification.

Electrical Load Capacity of Controller

Three Phase Heater Load

Heater Rating: 4 kW per unit
Minimum Load: 1 4 kW
Maximum Load: 4 4 kW (Total 16 kW)

Single Phase Heater Load

Heater Rating: Up to 2 kW per unit
Minimum Load: 1 heater
Maximum Load: 3 heaters (Total 6 kW)

Note:
Single phase heaters draw higher current; therefore, lower total power is recommended. For large curing tanks, three phase heaters provide better efficiency and stability.

SS316 Waterproof & Shockproof Immersion Heaters

Three Phase Immersion Heater

Power Rating: 4 kW
Cable Length: 5 meters
Cable Type: 5-core
Heater Material: SS316
Protection: Waterproof & shockproof

Single Phase Immersion Heater

Power Rating: 2 kW
Cable Length: 5 meters
Cable Type: 3-core
Heater Material: SS316
Protection: Waterproof & shockproof

Recommended Heater Configuration for Curing Tanks

Single Phase System (Small & Medium Tanks)

2000 liters: 1 2 kW heater
4000 liters: 2 2 kW heaters
6000 liters: 3 2 kW heaters

Maintains 27 2 C curing temperature.

Three Phase System (Large Tanks)

Up to 2500 liters: 1 4 kW heater
Up to 5000 liters: 2 4 kW heaters (8 kW)
Up to 7500 liters: 3 4 kW heaters (12 kW)
Up to 10,000 liters: 4 4 kW heaters (16 kW)

Best Practices for Uniform Concrete Curing

Interconnect multiple curing tanks using a water circulation pump
For identical tanks in the same environment, one temperature sensor is sufficient
For different tank sizes, place the sensor in the largest tank
Use multiple controllers for independent temperature control
Multichannel curing tank controller available for economical multi-tank operation

NABL Compliance & Custom Solutions

NABL-traceable temperature calibration certificate available
Multichannel and customized curing tank controllers
Designed for NABL labs, RMC plants, infrastructure projects, and site laboratories

Contact for Pricing & Technical Support

8452062580
sales@vedantrik.com

Topic covered above

Curing tank temperature controller
Concrete cube curing tank controller
NABL curing tank temperature controller
Concrete curing tank heater
SS316 immersion heater for curing tank
Single phase curing tank heater
Three phase curing tank heater
Concrete laboratory curing equipment
Curing tank temperature control system

Reliable Precision for Laboratory Curing Needs

This temperature controller ensures precise water temperature maintenance in curing tanks, essential for concrete testing laboratories. Utilizing advanced PT100 sensing technology, it can achieve and sustain target temperatures from ambient up to 100C with a high degree of accuracy and fast response. Its robust automated controls and digital display allow for straightforward operation, ensuring consistency throughout the curing process.

Engineered for Safety and Durability

Safety is paramount with features like an over-temperature audible alarm and sturdy powder-coated metal housing with IP54 protection. Designed exclusively for indoor use, it offers reliability and a long operational life even with intensive laboratory routines. The standard 1/2 inch port, 1.5-metre cable, and panel-mount digital controls make installation and daily use both convenient and safe.

FAQ's of Curing Tank Temperature Controller:

Q: How does the Curing Tank Temperature Controller maintain consistent water temperatures?

A: The controller utilizes a high-precision PT100 temperature sensor and digital automatic temperature control to monitor and adjust the water temperature continuously. The system instantly responds to temperature fluctuations within a measuring range of 0C to 100C, ensuring reliable and consistent environment for curing concrete specimens.

Q: What is the installation process for this temperature controller?

A: Designed for easy panel mounting, the unit comes with a standard 1/2 inch inlet port and a 1.5-metre cable. Simply fit the controller onto your curing tank, connect the power supply (230 V AC, 50 Hz), and interface via the digital panel controls. The external temperature sensor allows flexible placement for optimal performance.

Q: When should the over-temperature alarm function be expected to activate?

A: The over-temperature audible alarm will activate if the water temperature exceeds the preset safety limit you set during configuration. This ensures immediate notification to lab personnel, protecting both the specimens and the equipment.

Q: Where is the ideal operating environment for this device?

A: This unit is specifically engineered for indoor use in laboratory settings. Its IP54-rated powder-coated metal housing protects against dust and splashes, making it robust enough for typical laboratory environments.

Q: What are the key benefits of using this temperature controller in a laboratory?

A: Key benefits include high accuracy (1C), digital automatic temperature control, instant response, ease of installation, robust construction, and enhanced safety features. These ensure optimal curing conditions for concrete testing, leading to reliable and repeatable test results.

Q: How precise is the temperature control for curing tank applications?

A: The controller delivers a temperature control resolution of 0.1C and an accuracy of 1C, which is critical for maintaining the standardized conditions required for concrete specimen curing and related laboratory protocols.
