Thermocouple Sensors installation for temperature controlled concrete and Mass Concrete Temperature Monitoring

Thermocouple Sensors installation for temperature controlled concrete and Mass Concrete Temperature Monitoring Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Thermocouple Sensors installation for temperature controlled concrete and Mass Concrete Temperature Monitoring

Vedantrik Wireless Thermocouple Sensors provide an advanced and reliable solution for temperature monitoring in mass concrete structures. The system is specially designed to measure the internal temperature of concrete during the hydration process, helping engineers control thermal gradients and prevent thermal cracking in large concrete elements.

Mass concrete structures such as raft foundations, pile caps, piles, dams, footings, and large foundations generate significant heat during cement hydration. If the temperature difference between the concrete core and surface becomes excessive, it may lead to thermal stress and cracking.

Using Vedantrik wireless thermocouple sensors, engineers can continuously monitor concrete temperature in real time without the complexity of long cables or external power supply.

Thermocouple Installation in Concrete

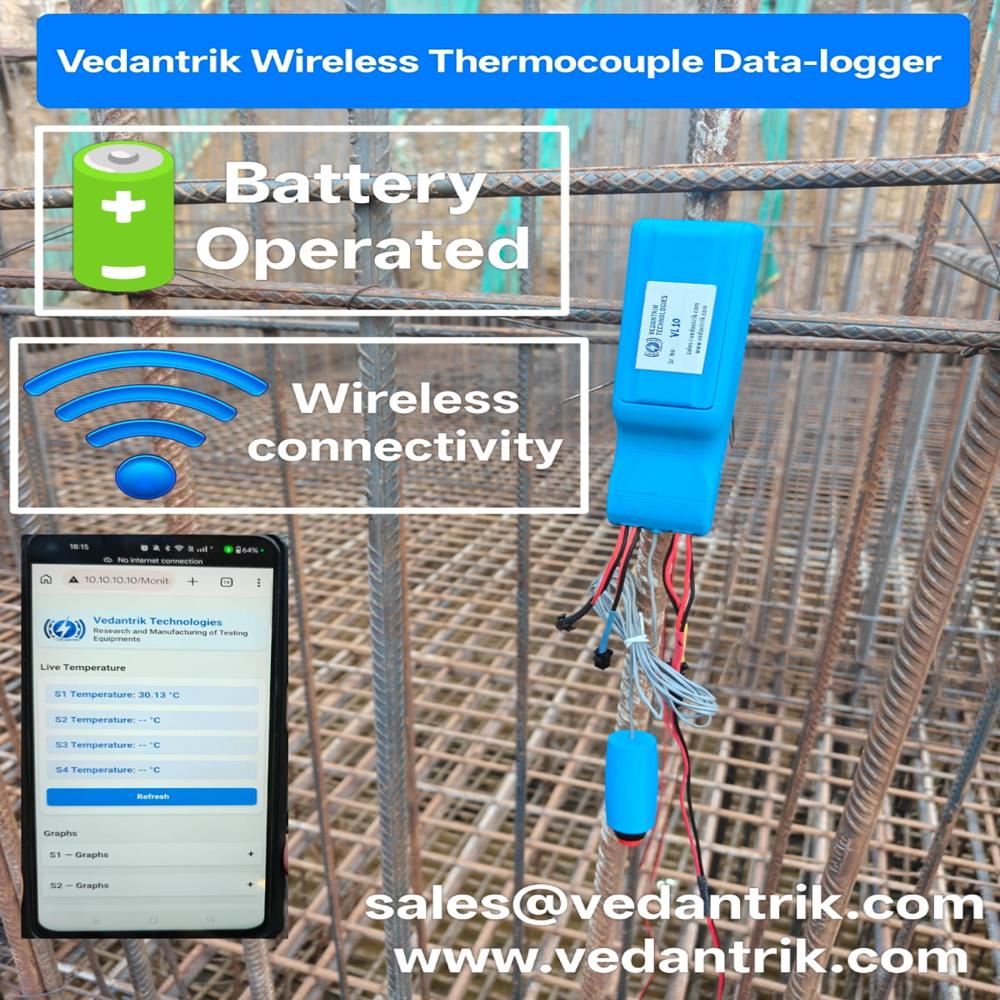

For accurate concrete temperature monitoring, thermocouple sensors are installed inside the reinforcement cage before concrete pouring.

At a typical monitoring location, 34 thermocouple sensors are installed at different depths when the concrete thickness is around 1.82.0 meters.

The sensors are generally positioned at:

* Top layer of concrete

* Middle or core zone

* Bottom layer

Each sensor is securely fixed to the reinforcement bars using cable ties or binding wire to ensure stable positioning during concrete pouring and vibration.

Advantages of Vedantrik Wireless Thermocouple Sensors

The Vedantrik wireless monitoring system eliminates traditional wiring and simplifies temperature monitoring on construction sites.

Key advantages include

Completely Wireless Concrete Temperature Monitoring

Battery Operated Thermocouple Sensors

No Long Cable Installation Required

Quick and Easy Site Installation

Continuous Real-Time Concrete Temperature Monitoring

Suitable for Mass Concrete Structures

This system reduces installation complexity while providing accurate temperature data throughout the concrete curing period.

Concrete Temperature Monitoring Duration

Concrete temperature is typically monitored for 7 to 14 days after casting, depending on project specifications.

The collected temperature data helps engineers evaluate:

* Peak hydration temperature

* Core vs surface temperature difference

* Thermal cracking risk in mass concrete

* Concrete maturity and strength development

These measurements are critical for quality control, structural durability, and compliance with thermal control plans in infrastructure projects.

Applications

Vedantrik Wireless Thermocouple Sensors are widely used in:

* Mass Concrete Temperature Monitoring

* Raft Foundation Monitoring

* Pile and Pile Cap Monitoring

* Bridge Foundations

* Dam Construction Projects

* Large Industrial Foundations

Why Choose Vedantrik Wireless Thermocouple Sensors

Vedantrik offers a cost-effective, reliable, and easy-to-install concrete temperature monitoring system that helps contractors, consultants, and project engineers maintain proper thermal control in mass concrete construction.

The wireless design eliminates cable management issues, reduces installation time, and ensures continuous temperature monitoring during the most critical curing period.

Wireless thermocouple sensors

Battery operated No external power required

No long cable runs

Real-time temperature monitoring of concrete core

Maturity & strength estimation possible

Ideal for raft foundations, piles, footings and mass concrete
