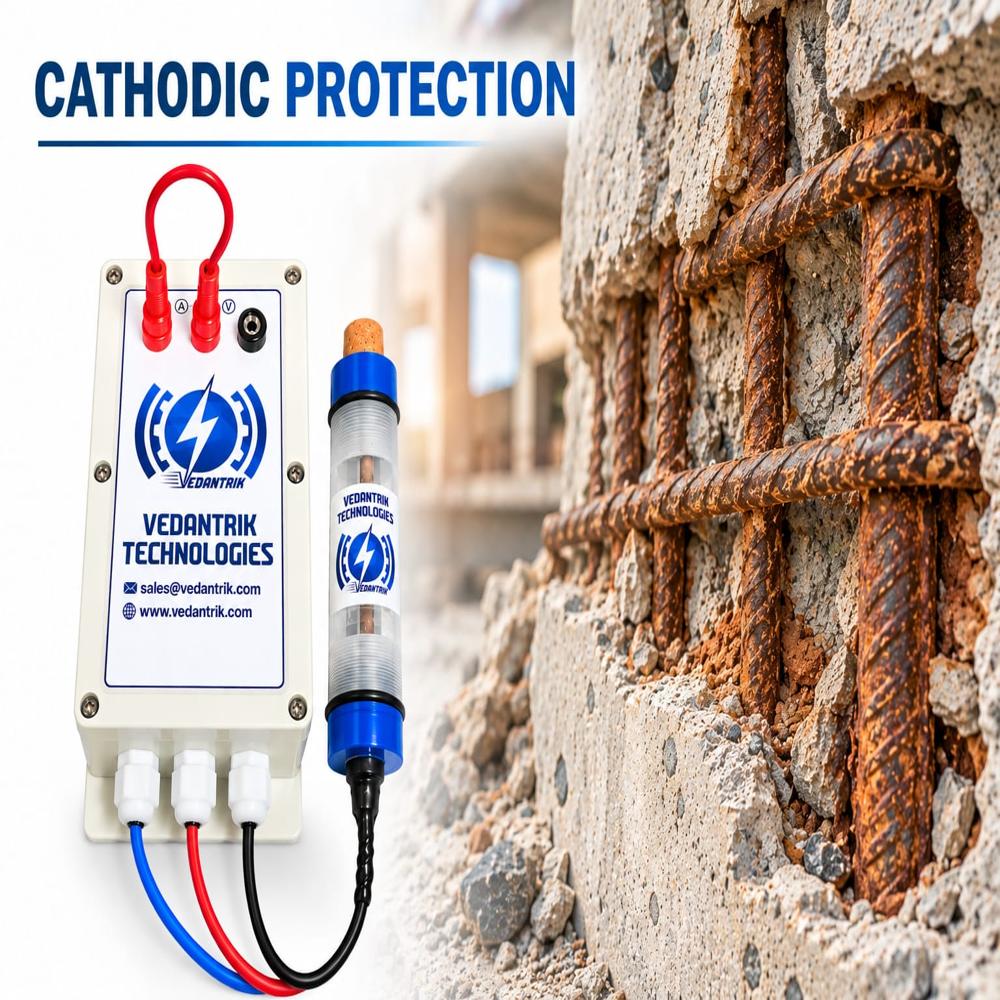

Cathodic Protection Specification

  • Application
  • Steel Reinforcement Corrosion Prevention in Concrete
  • Automation Grade
  • Semi-automatic
  • Test Range
  • Up to 10 mA
  • Temperature
  • -10C to 50C
  • Specimen Size
  • Applicable to rebar/concrete structures
  • Display Type
  • LED indicator/optional digital display
  • Port Size
  • Standard Terminal
  • Operating Voltage
  • DC 12V / 24V
  • Accuracy
  • 0.01V
  • Mounting Type
  • Wall/Surface Mount
  • Response Time
  • <2 seconds
  • Resolution
  • 0.01V
  • Measuring Range
  • -2V to +2V (reference electrode)
  • Interface Type
  • Terminal Block/Cable Connectors
  • Power Supply
  • DC 12V / 24V
  • Features
  • Portable, Easy Installation, High Durability
  • Usage
  • Monitoring/Electrochemical Protection
  • Machine Weight
  • 50 Gram (g)
  • Control Mode
  • Automatic / Manual
  • Equipment Type
  • Cathodic Protection System
  • Cable Length
  • Approximately 1 meter
  • Website
  • www.vedantrik.com
  • Corrosion Monitoring
  • Continuous
  • Contact Email
  • sales@vedantrik.com
  • Typical Usage Environment
  • Construction Sites, Industrial Plants
  • IP Rating
  • IP65
  • Electrode Type
  • Copper Sulphate Reference Electrode
  • Case Material
  • High grade ABS plastic enclosure


Cathodic Protection Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 7 Days


About Cathodic Protection

Absolutely. I would make the distinction between the three CP approaches clearer, especially Sacrificial Anode, ICCP, and Hybrid Cathodic Protection, so the LinkedIn post communicates that Vedantrik can provide different solutions depending on the structure and corrosion condition.

Cathodic Protection for Rebar Corrosion | Vedantrik Technologies

Protecting reinforcement today for longer-lasting concrete structures.

Reinforcement corrosion is one of the major causes of deterioration in reinforced concrete structures, particularly in marine, coastal, industrial and chloride-exposed environments.

At Vedantrik Technologies, we provide engineered Cathodic Protection (CP) solutions for reinforced concrete structures, helping control the electrochemical corrosion process and extend the service life of critical infrastructure.

Our Cathodic Protection Solutions

We offer solutions based on the specific requirements of the structure, corrosion condition and desired protection strategy:

1. Sacrificial Anode Cathodic Protection (SACP)
Uses a more active metal, such as zinc, as the sacrificial anode. The anode supplies protective current to the reinforcing steel while gradually consuming itself.

2. Impressed Current Cathodic Protection (ICCP)
Uses an external DC power source and suitable anodes to deliver controlled protective current to the reinforcement. ICCP can be particularly useful where continuous and adjustable protection is required.

3. Hybrid Cathodic Protection
Combines the advantages of sacrificial anode and impressed-current approaches. Hybrid systems can be engineered to provide an initial or controlled impressed current while also incorporating sacrificial protection for specific project requirements.

Applications

Our cathodic protection solutions can be engineered for:

* Bridges & Flyovers
* Marine & Coastal Structures
* RCC Buildings
* Piles & Foundations
* Industrial Structures
* Water & Wastewater Structures
* Chloride-contaminated concrete
* Existing structures undergoing rehabilitation
* Critical reinforced concrete infrastructure

Our Engineering Approach

At Vedantrik Technologies, we don't treat cathodic protection as a one-size-fits-all solution.

Our approach can include:

1. Corrosion assessment
2. Rebar potential assessment
3. Selection of SACP / ICCP / Hybrid CP
4. Anode system design and configuration
5. Current and voltage monitoring
6. Protection-current evaluation
7. Electrical connectivity and system installation
8. Site-specific engineering support

Our objective is to develop practical, measurable and project-specific corrosion protection solutions that support the long-term durability of reinforced concrete structures.

Mob: 7304519092
Email: sales@vedantrik.com
Web: www.vedantrik.com

Vedantrik Technologies
Innovative Solutions for a Durable Tomorrow.

#CathodicProtection #ICCP #HybridCathodicProtection #SacrificialAnode #RebarCorrosion #CorrosionProtection #ConcreteDurability #StructuralHealthMonitoring #ReinforcedConcrete #CivilEngineering #Infrastructure #MarineStructures #BridgeEngineering #CorrosionEngineering #StructuralDurability #VedantrikTechnologies


Reliable Protection for Concrete Structures

Designed for steel reinforcement corrosion prevention, this system delivers continuous monitoring for rebar and concrete specimens. With automatic and manual control modes, its robust build withstands harsh on-site conditions, ensuring the long-term durability of your assets. Its LED indicator and optional digital display offer clear status updates.


User-Friendly Operation and Installation

Featuring a lightweight 50g enclosure and a simple wall or surface mount design, installation is both straightforward and quick. Its portable nature and standard terminal connectivity make it ideal for varied industrial settings, letting users adapt the system for both permanent and temporary installations.

FAQ's of Cathodic Protection:


Q: How does the cathodic protection system monitor corrosion in concrete structures?

A: This system utilizes a copper sulphate reference electrode to measure potential differences in reinforcement bars within concrete. It continually monitors for signs of corrosion, displaying real-time voltage data, so maintenance teams can take timely action to prevent structural damage.

Q: What environments is this cathodic protection system best suited for?

A: With its high-grade ABS plastic enclosure and IP65 rating, the system is ideal for use in harsh construction sites and industrial plants where dust, water, and rough handling are common.

Q: When should this system be installed during a construction project?

A: Installation is recommended during the construction phase or when retrofitting existing structures that require corrosion protection. Early installation ensures continuous monitoring from the start of the structure's service life.

Q: Where should the cathodic protection system be mounted?

A: For optimal performance, mount the system to a wall or surface near the monitored structure. Its compact and portable design allows for flexible placement, ensuring proper monitoring of concrete-reinforced areas.

Q: What is the process for using the cathodic protection system?

A: After mounting, connect the reference electrode and power supply (DC 12V/24V) via the provided terminal blocks or cable connectors. Select automatic or manual mode, and observe readings through the LED indicator or optional digital display. The system continuously monitors and reports corrosion status.

Q: What are the benefits of using this cathodic protection system for my project?

A: By providing accurate and rapid monitoring, this system helps to prevent costly structural failures due to corrosion, extends the service life of reinforced concrete, and reduces long-term maintenance costs. Its portable design and easy installation further enhance on-site efficiency.

Q: Who can I contact for technical support or purchasing inquiries?

A: For further information, support, or to place an order, email sales@vedantrik.com or visit our website at www.vedantrik.com.

Price 95000.0 INR/ Piece

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 7 Days
